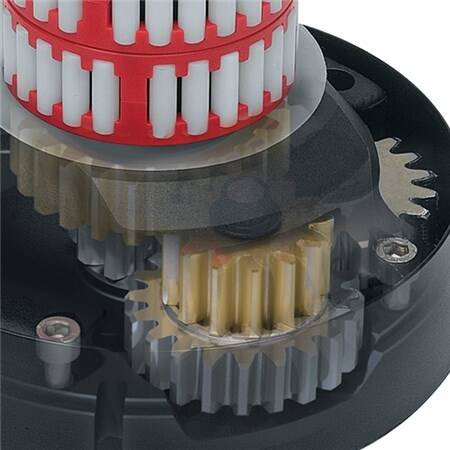

Stainless steel load-carrying gears and pins provide strength and durability. Sealed gearbox and high-load roller bearings reduce friction under load. Roller bearings are corrosion resistant and do not require lubrication.
Wciągarka Bębnowa Aluminiowa O Dużej Wydajności Rigging Winch 500
Wciągarka Bębnowa Aluminiowa O Dużej Wydajności Rigging Winch 500
- The Rigging Winch 500 provides the user with a lightweight, CE certified, portable winch mounted to a robust adaptor plate.
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
Rigging Winches come in two sizes and provide the user with lightweight, portable winches that are mounted to a sturdy adapter plate. They have extra tall drums to accommodate more wraps of rope for use when extra lifting capacity is needed. More wraps mean increased rope to capstan contact area, which leads to high efficiency when pulling. They can be mounted to a tripod. They are simple to use and ideal for a diverse range of lifting and load-pulling applications.
The Rigging Winch 500 provides the user with a lightweight, CE certified, portable winch mounted to a robust adaptor plate. The Rigging Winch 500 weighs 7 kg (15.4 lb) with a 1/2 ton working load limit, the 2-speed winch magnifies the operator pulling power by up to 40 times. The multiple mounting options provide versatility when working in difficult or remote environments. Designed for ropes up to 12 mm (1/2") in diameter.
Durability
Specifications:
| Weight (lb) | 11.7 lb |
| Maximum line Ø (mm) | 12 mm |
| Maximum line Ø (in) | 1/2 in |
| Minimum line Ø (mm) | 8 mm |
| Minimum line Ø (in) | 5/16 in |
| Weight (kg) | 5.3 kg |
| Power ratio with 254 mm/10" winch handle |
13.5:1/39.9:1 |
| Maximum working load (kg) | 500 kg |
| Maximum working load (lb) | 1102 lb |
Brand
Entity responsible for this product in the EU
Harken Polska Sp. z o.o.More
ProducerHarken, IncAddress:
N15W24983 Bluemound RoadPostal code: WI 53072City: PewaukeeCountry: Stany ZjednoczonePhone number: +1 262 691 3320
Responsible entityHarken Polska Sp. z o.o.Address:
Rydygiera 8 bud. 3A lok. 101Postal code: 01-793City: WarszawaCountry: PolskaPhone number: +48 669 005 600E-mail: polska@harken.pl
Symbol
40.2STGNA
Warranty
kolor
Czarny
Liczba sztuk w opakowaniu
1
1 rok gwarancji
1 rok gwarancji
